Custom-cut PTFE gaskets for flange & industrial sealing – by National Fluoromers

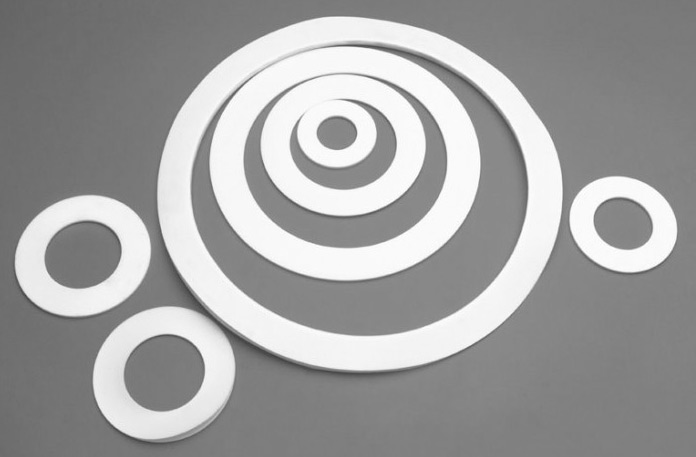

PTFE Ready-Cut Gaskets
Enquiry Now
technical specifications
Property Value
MaterialVirgin PTFE / glass-filled / expanded PTFE
Thickness0.1 mm to 5 mm (standard), up to 25 mm custom
Outer diameter (OD)Up to 1000 mm (larger on request)
Inner diameter (ID)As per flange or customer drawing
Temperature range–200°C to +260°C
Surface finishSmooth or textured (on request)

National Fluoromers is a trusted manufacturer, supplier, and exporter of PTFE ready-cut gaskets, offering precision-cut sealing solutions for demanding chemical, food, pharmaceutical, and high-temperature environments. These gaskets are CNC or die-cut from high-quality PTFE sheets to match customer drawings, standard flange profiles, or special equipment shapes.

Designed for aggressive media, PTFE gaskets provide long-term sealing reliability, non-stick performance, and resistance to nearly all corrosive substances.

what is a PTFE ready-cut gasket?

A PTFE ready-cut gasket is a flat, ring-shaped or custom-profile sealing element made from polytetrafluoroethylene. These gaskets are cut to precise dimensions using CNC machines or die punches to fit between two mating surfaces—typically pipe flanges or equipment interfaces. Their purpose is to prevent leakage of gases, liquids, or powders in challenging conditions.

Due to PTFE’s chemical inertness and temperature resistance, these gaskets are ideal for static sealing in harsh environments where elastomers would degrade.

key features
  • Chemical resistance: Inert to nearly all acids, solvents, and reactive media.
  • High temperature stability: Works from –200°C to +260°C.
  • Non-stick & non-contaminating: No product build-up or adhesion.
  • Custom-cut for precision fit: CNC machined or die-cut to exact requirements.
  • FDA & USP grade available: Suitable for food, pharmaceutical, and cleanroom use.
  • Low compressibility set: Maintains sealing pressure over long durations.
advantages
  • Leak-proof sealing in critical applications
  • Compatible with glass, plastic, metal, and enamel-lined flanges
  • No gasket degradation or contamination
  • Excellent electrical insulation
  • Easy installation and removal
  • Long service life with minimal maintenance
applications of PTFE ready-cut gaskets
  • Pipeline flange sealing in chemical plants
  • High-purity fluid systems in pharmaceutical & biotech
  • Food-grade process equipment
  • Glass-lined reactor and vessel interfaces
  • Non-metallic or soft-faced flanges
  • Aggressive gas or solvent containment systems
industries we serve
  • Chemicals & petrochemicals
  • Food & beverage
  • Pharmaceuticals & biotech
  • Oil & gas
  • Power & water treatment
  • Pulp & paper
  • Semiconductors & cleanrooms
why choose National Fluoromers
  • CNC and die-cutting capabilities for tight tolerances
  • Custom gaskets made to drawing or standard sizes (ASME, DIN, etc.)
  • Virgin and modified PTFE materials for specific applications
  • Short lead times with global export support
  • ISO-compliant quality systems and traceability
supply options
  • Supplied as flat gaskets, flange rings, or custom shapes
  • Available with bolt hole patterns or solid discs
  • Bulk, OEM, or project-based quantities supported
  • Packaged in clean, moisture-protected export packaging
Looking for PTFE ready-cut gaskets with guaranteed sealing performance? Reach out to National Fluoromers – your reliable partner for custom PTFEsealing solutions.

Send your drawings or specifications today. We'll manufacture the perfect gasket – cut and ready to install.
