Precision-engineered PTFE films – manufactured & exported by National Fluoromers
| Property | Value |
|---|---|
| Material | Virgin PTFE (optional filled grades) |
| Thickness range | 0.1 mm to 1 mm |
| Width | Customized |
| Length | In rolls or cut sheets |
| Temperature range | –200°C to +260°C |
| Surface finish | Smooth (standard), etched (optional) |
| Color | White / transparent (standard) |
Whether you're sealing, insulating, wrapping, or bonding, our PTFE films are available in various thicknesses and roll widths to suit your project’s exact requirements.

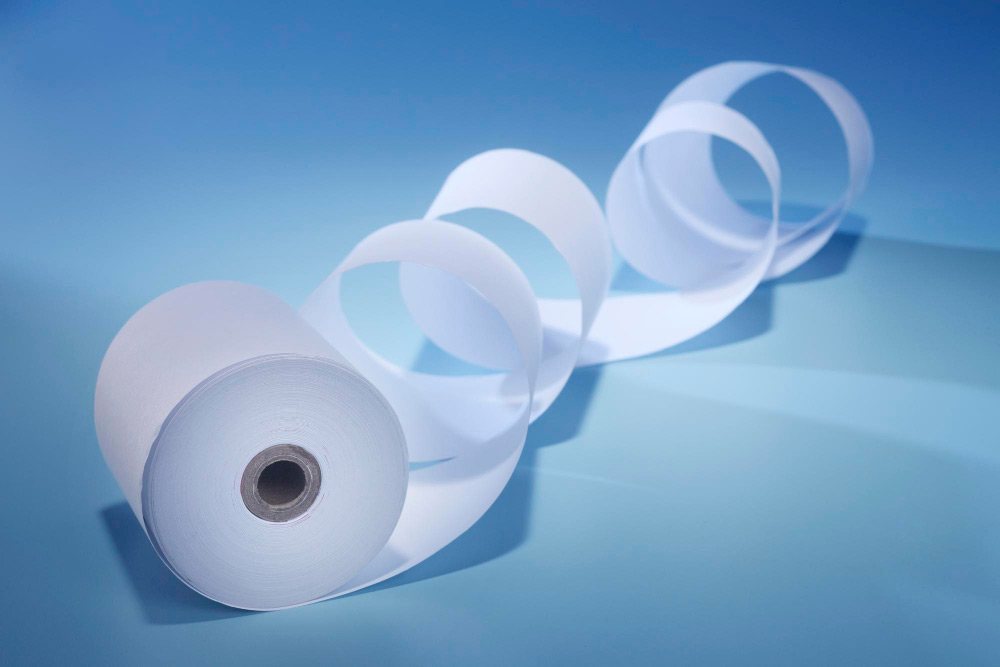

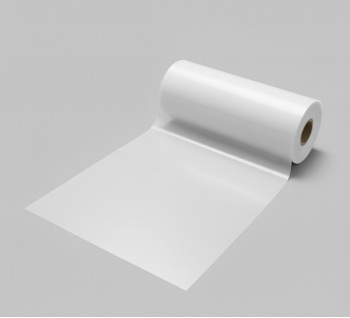

PTFE film is a thin, continuous sheet produced from high-purity PTFEresin using precision skiving or extrusion processes. The result is a flexible, smooth-surfaced film that combines the chemical resistance and thermal performance of bulk PTFEwith the handling advantages of a thin plastic film.
It’s widely used where weight, thickness, and electrical properties are crucial.
- Ultra-thin & lightweight: Thickness as low as 0.1 mm available.
- Superior dielectric strength: Excellent electrical insulation properties.
- Chemical & solvent resistance: Inert to virtually all industrial chemicals.
- Non-adhesive & non-stick: Prevents buildup and contamination.
- Thermally stable: Operates from –200°C to +260°C continuously.
- Weatherproof & UV resistant: Ideal for both indoor and outdoor applications.
- Easily cut, wrapped, or laminated into complex shapes
- Minimal material fatigue or wear over time
- Suitable for EMI shielding, insulation, and thermal barriers
- FDA-compliant versions available for food and medical applications
- Strong bond-ability with optional chemical etching treatment
- Electrical insulation: Cable wraps, circuit barriers, and shielding.
- Lining & lamination: Tanks, containers, and protective surfaces.
- Medical & laboratory: Non-reactive liners and sterile barriers.
- Aerospace & automotive: Lightweight thermal and friction insulation.
- Packaging industry: Non-stick surfaces in sealing jaws and heat elements.
- Printing & textile: Anti-stick surfaces in heat-transfer and dyeing machinery.
- Electrical & electronics
- Aerospace & defense
- Food & pharmaceutical processing
- Chemicals & petrochemicals
- Automotive & EV systems
- Precision manufacturing & laboratory applications
- Precision thickness control and surface uniformity
- Consistent quality across every roll or sheet
- Chemical etching available for adhesive applications
- Fast delivery and bulk production capability
- ISO-compliant production and international shipping support
- Rolls in various thicknesses and widths
- Custom-cut sheet formats
- Single-side or double-side chemically etched
Our technical team is ready to assist with samples, custom orders, and application support.
